Combined wet and dry cooling tower

Category:

Combined wet and dry cooling tower

Keywords:

Combined wet and dry cooling tower

E-MAIL:

hfzhuqihang@gmail.com

Consult

Product details

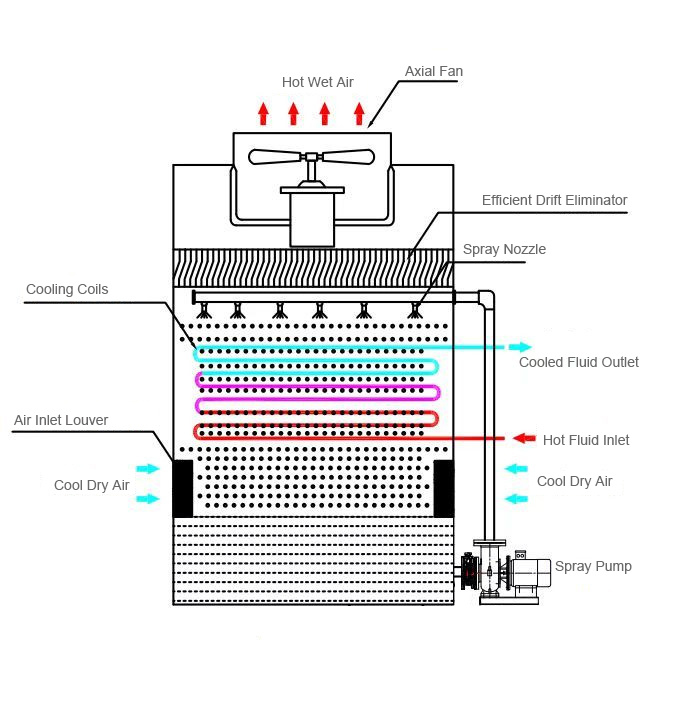

The circulating water first circulates into the fincondenser ofthe dry part, and then the water out of the circulation enters the round
tube condenser of the wet part below, and the dry part condenser and the wet part condenser are connected in series. The spray pipe
is arranged between the dry type and the wet type, spraying water only to the round tube condenser in the wet part, and the dry part
only draws air up through thefanto cool down.Thenatural air enters the cooling tower from the air inlet grille, flowsupward,and is
discharged to the top of the cooling tower through the exhaust system.
The spray pump absorbs water from the sink, through the external spray pipe to the internal spray device,and evenly sprits down on the
wet cooler,and falls into the sink.
The advantages of the dry and wet combined tower are: greatly saving the consumption of spray water, compared with the ordinary
cooling tower, the"white fog" above the dry combined cooling tower is also significantly reduced!
Therefore,thedryand wet combined closed cooling tower is also caled the"white mist" closed cooling tower.

Model	Cooling Capacity	Main Circulation Pump	Fan		Spray Pump		Connecting Pipes (mm)			Equipment Size (mm)			Net Weight (Kg)
Model	Cooling Capacity	Power	Air Volume	Power (kw)	Flow Rate (m³/h)	Power (kw)	Inlet and Outlet	Make-up Water Inlet	Drain Outlet	Length	Width	Height	Net Weight (Kg)
HFB-N100T	500000	11*2	32000*2	3*2	70	1.5	DN100	DN32	DN40	3300	1500	4000	2500
HFB-N150T	750000	15*2	60000*2	5.5*2	100	2.2	DN100	DN40	DN50	3300	2000	4000	3100
HFB-N200T	1000000	22*2	85000*2	7.5*2	150	3	DN150	DN40	DN50	3900	2300	4200	4000
HFB-N260T	1300000	37*2	130000*2	7.5*2	180	4	DN200	DN50	DN65	4900	2300	4200	4800
HFB-N300T	1500000	37*2	150000*2	11*2	230	5.5	DN200	DN50	DN65	5400	3000	4200	5400
HFB-N350T	1750000	45*2	170000*2	11*2	230	5.5	DN250	DN65	DN50*2	5400	3000	4800	6000
HFB-N400T	2000000	45*2	180000*2	15*2	280	7.5	DN250	DN65	DN50*2	6000	3000	4800	6800
HFB-N450T	2250000	55*2	200000*2	15*2	280	7.5	DN300	DN65	DN50*2	6400	3000	5200	7500
HFB-N500T	2500000	75*2	210000*2	18.5*2	180*2	4*2	DN300	DN65	DN50*2	7500	3000	5600	8500

The configuration of the auxiliary water tank is as follows: (Auxiliary machine Size)

100-200T: 1700-1100-1800 (1.0m³ water tank); Water tank elevated

180T-260T: 2100-1600-1400 (1.5m³ water tank); 240-300T: 2100-2100-1400 (2.0m³ water tank) Water tank placed horizontally

320T-400T: 2300-2100-1800 (3.0m³ water tank); 450-600T: 2500-2100-2200 (4.0m³ water tank) Water tank placed horizontally
